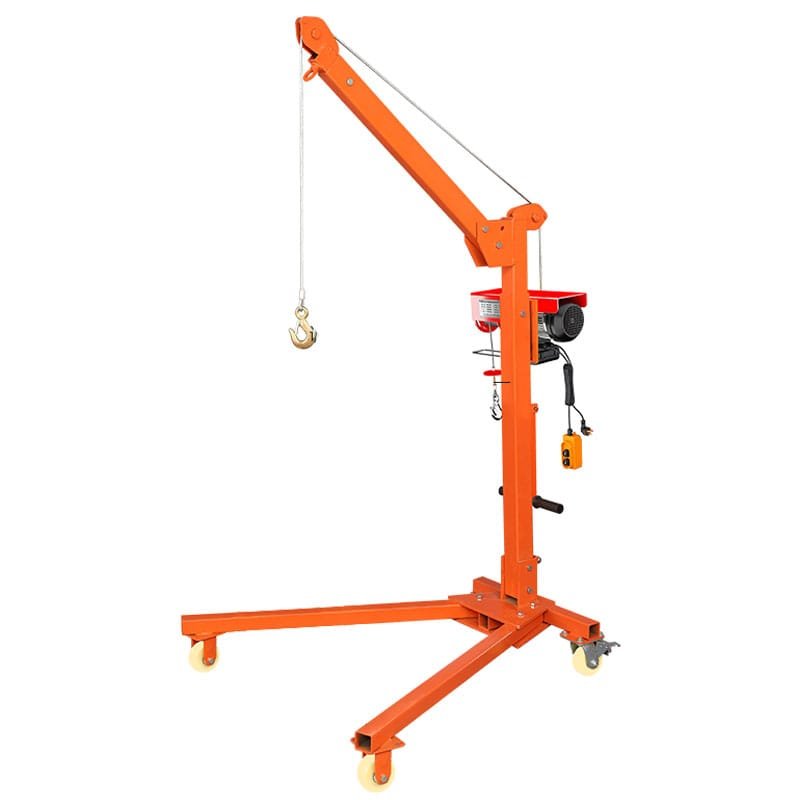

Manual Jib Crane (Max 2m & Portable Type)
The Manual Jib Crane by Hiking Machinery is an efficient lifting device specifically designed for the industrial, construction, and logistics sectors, particularly suitable for the diverse working environments in the UAE and GCC countries. This product stands out for its portability, durability, and versatility, effortlessly handling tasks such as heavy material transportation, loading, unloading, and installation. With a jib arm length of up to 90 centimeters and an adjustable hook height (ranging from 1.7 meters to 2 meters), it meets various scenario requirements. The thickened steel wire rope design offers higher load capacity and durability. The unique feature of the Hiking Machinery Manual Jib Crane lies in its foldable design and multiple power configurations (manual or electric drive), which not only save space but also adapt to different work environments. It resolves the issues of traditional cranes being bulky, difficult to move, and complex to install, providing users with an efficient and safe solution.
Products (Szie)
If you need to know more about the tools, Please leave your contact in the below from, We will contact you in 24 hours.
HKJC-M Manual Jib Crane Datasheet
Specification | Weight 1 | Weight 2 | Weight 3 |
---|---|---|---|
Rated Load | 500 kg | 300 kg | 200 kg |
Self Weight | 64 kg | 44 kg | 34 kg |
Wheel to Ground Height | 2 m - 2.5 m | 1.7 m - 2 m | 1.6 m - 2 m |
Distance Between Columns | 80 cm | 70 cm | 70 cm |
Hanger Height | 0.9 m - 1.15 m | 90 cm | 90 cm |
Leg Length | 1.1 m | 1 m | 1 m |
Distance Between Legs | 1 m | 90 cm | 80 cm |
Leg to Ground Height | 19 cm | 14 cm | 14 cm |
HKJC-E Manual Jib Crane Datasheet
Specification | Weight 1 | Weight 2 | Weight 3 |
---|---|---|---|
Rated Load | 500 kg | 300 kg | 200 kg |
Self Weight | 72 kg | 53 kg | 44 kg |
Wheel to Ground Height | 2 m - 2.5 m | 1.7 m - 2 m | 1.6 m - 2 m |
Steel Column Distance | 80 cm | 70 cm | 70 cm |
Hanger Height | 0.9 m - 1.15 m | 90 cm | 90 cm |
Leg Length | 1.1 m | 1 m | 1 m |
Distance Between Legs | 1 m | 90 cm | 80 cm |
Leg to Ground Height | 19 cm | 14 cm | 14 cm |
Product Features
As a renowned brand, Hiking Machinery has earned the trust of numerous users with its excellent quality and strong market reputation. Our cranes not only offer powerful functionality but also effectively solve various problems users encounter during heavy material handling. The main features of this product include:
- Link-Free Design: Utilizes link-free technology to eliminate the risk of chain breakage, enhancing safety.
- Comfortable Handles: Specially treated handles improve anti-slip performance, reduce fatigue, and enhance operational comfort.
- High-Strength Hooks: Thickened material treatment ensures the stability and durability of the hooks, suitable for heavy material handling.
- Telescopic Columns: Adjustable column height to adapt to different working environments as needed.
- 360-Degree Rotating Arm: Flexible rotating design allows for easy operation even in confined spaces.
- Wear-Resistant Silent Casters: Casters are designed to be wear-resistant and silent, improving handling efficiency and suitable for various floor types.
- Multiple Power Configurations: Choose between manual or electric drive based on different scenario requirements to meet diverse needs.
- Portable Foldable Design: The crane can be folded, weighing only 200 kilograms when folded, making it easy to store and transport without occupying much space.
Hiking Machinery’s cranes, with their outstanding performance and user-friendly design, are the ideal choice for heavy material handling. Whether on a construction site or in a workshop, Hiking Machinery’s cranes provide efficient and safe handling solutions. Choose Hiking Machinery to experience unprecedented convenience and efficiency!
