Double Drum Road Roller
The Double Drum Road Roller is an efficient compaction machine specifically designed for a wide range of applications including urban roads, construction sites, car parks and industrial estates. This product is available in different models with weight options from 780kg to 4000kg and working widths from 700mm to 1400mm to meet different construction needs. It is equipped with a renowned brand engine, which ensures the machine’s stability and exceptional performance. The hawk-eye design of the superstructure provides a wider field of vision and an aesthetically pleasing appearance. Whether working day or night, the double-drum road roller ensures safety with an LED display dashboard, working lights and warning lights. The hydraulic system and stepless transmission functionality allow for flexible forward and reverse travel, greatly increasing working efficiency. In addition, the ergonomically designed seat ensures operator comfort during prolonged use, significantly reducing fatigue.
This road roller offers excellent fuel efficiency and long service life, making it particularly suitable for working in high temperature environments. Its powerful cooling system ensures optimum performance even in extreme conditions, meeting the demands of the hot and humid climate of the Gulf region, making it the ideal choice for construction sites.
Products

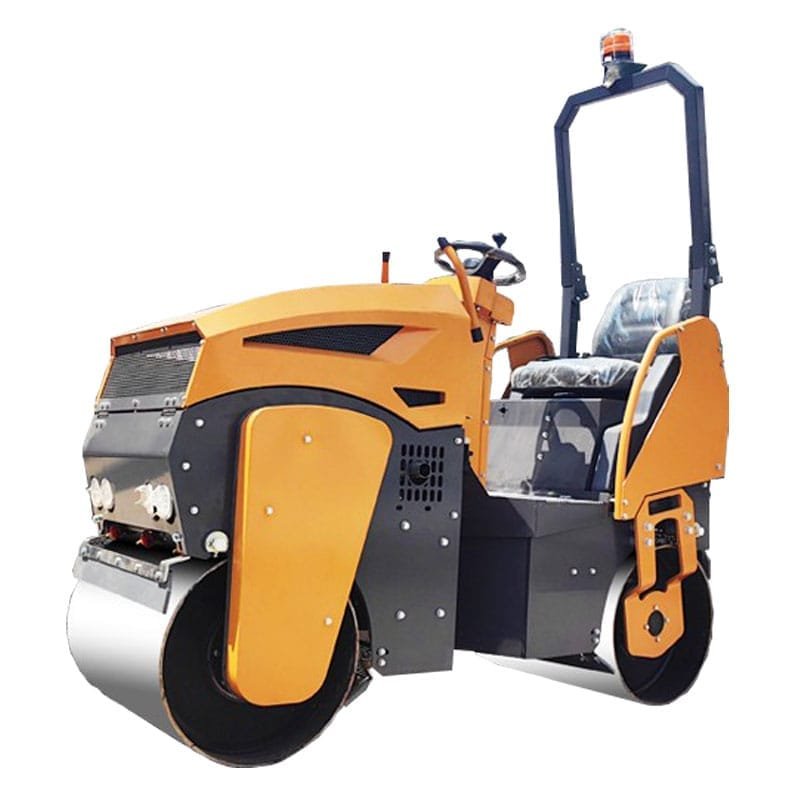

HR1200 Double Drum Road Roller Datasheet
| Item | Specification |
|---|---|
| Dimensions (mm) | 1780 × 825 × 1985 |
| Machine Weight (kg) | 1200 |
| Steel Wheel Diameter (mm) | 700 |
| Steel Wheel Width (mm) | 500 |
| Engine Model | Changchai Diesel Engine |
| Engine Power (kW) | 186F |
| Speed Range (km/h) | 0–6 |
| Travel Mode | Hydraulic Drive, Forward and Reverse |
| Braking System | Hydraulic Locking Brakes |
| Vibrating Force (kN) | 25 |
| Sprinkling System | Pressure Spraying Water System |

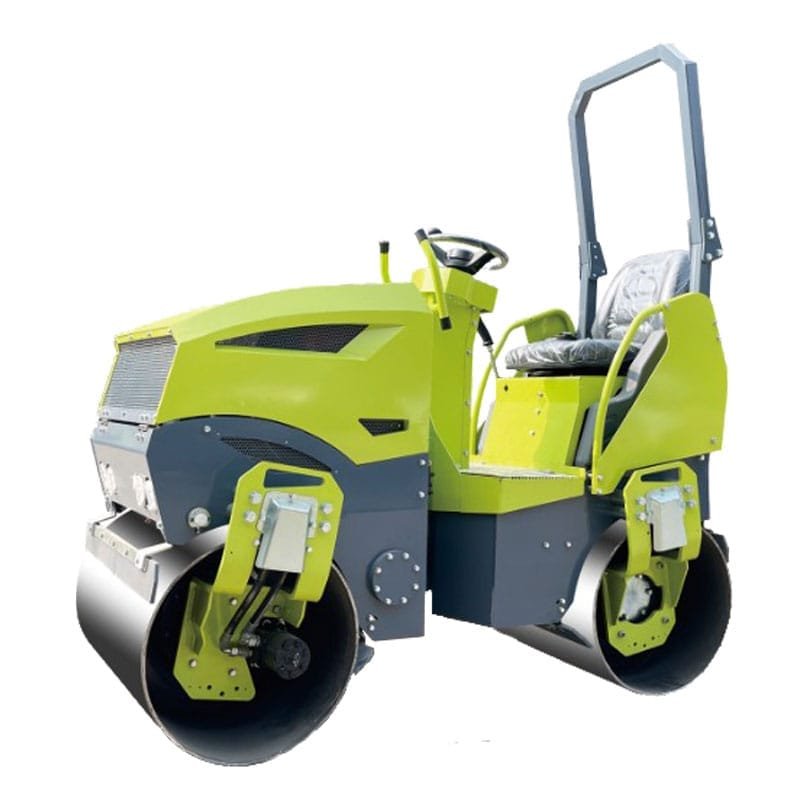

HR1500 Double Drum Road Roller Datasheet
| Item | Specification |
|---|---|
| Dimensions (mm) | 1940 × 930 × 2125 |
| Machine Weight (kg) | 1500 |
| Steel Wheel Diameter (mm) | 800 |
| Steel Wheel Width (mm) | 560 |
| Engine Model | Changchai Diesel Engine |
| Engine Power (kW) | 192F |
| Speed Range (km/h) | 0–6 |
| Travel Mode | Hydraulic Drive, Forward and Reverse |
| Braking System | Hydraulic Locking Brakes |
| Vibrating Force (kN) | 30 |
| Sprinkling System | Pressure Spraying Water System |

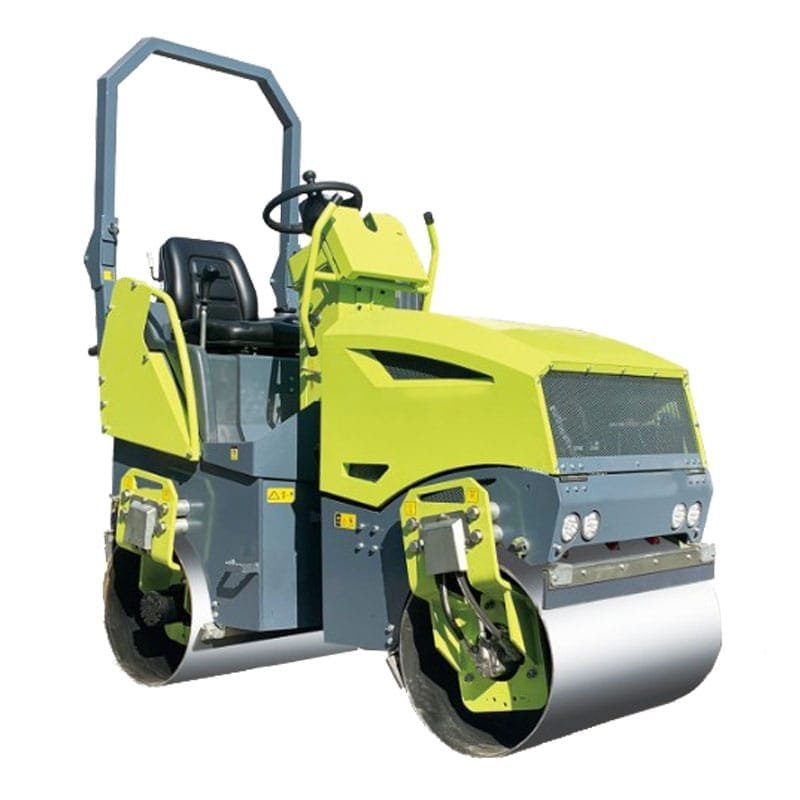

HR2000 Double Drum Road Roller Datasheet
| Item | Specification |
|---|---|
| Dimensions (mm) | 1940 × 930 × 2125 |
| Machine Weight (kg) | 1500 |
| Steel Wheel Diameter (mm) | 800 |
| Steel Wheel Width (mm) | 560 |
| Engine Model | Changchai Diesel Engine |
| Engine Power (kW) | 192F |
| Speed Range (km/h) | 0–6 |
| Travel Mode | Hydraulic Drive, Forward and Reverse |
| Braking System | Hydraulic Locking Brakes |
| Vibrating Force (kN) | 30 |
| Sprinkling System | Pressure Spraying Water System |

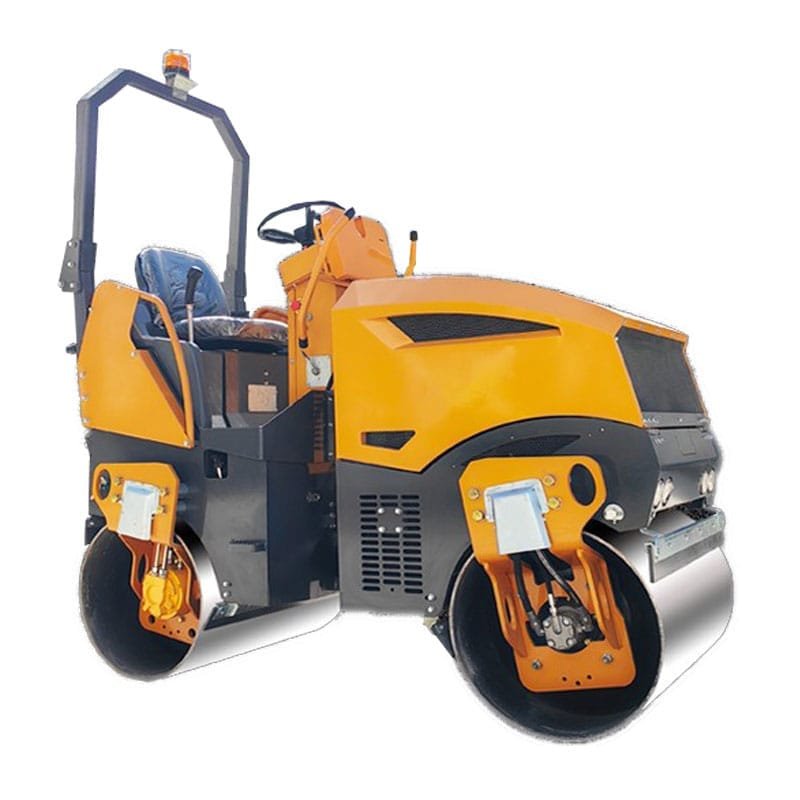

HR2500 Double Drum Road Roller Datasheet
| Item | Specification |
|---|---|
| Dimensions (mm) | 2255 × 1050 × 2445 |
| Machine Weight (kg) | 2450 |
| Steel Wheel Diameter (mm) | 900 |
| Steel Wheel Width (mm) | 630 |
| Engine Model | Yanmar 3TNV80 |
| Engine Power (kW) | 17.8 |
| Speed Range (km/h) | 0–10 |
| Travel Mode | Hydraulic Drive, Forward and Reverse |
| Braking System | Hydraulic Locking Brakes |
| Vibrating Force (kN) | 35 |
| Sprinkling System | Pressure Spraying Water System |

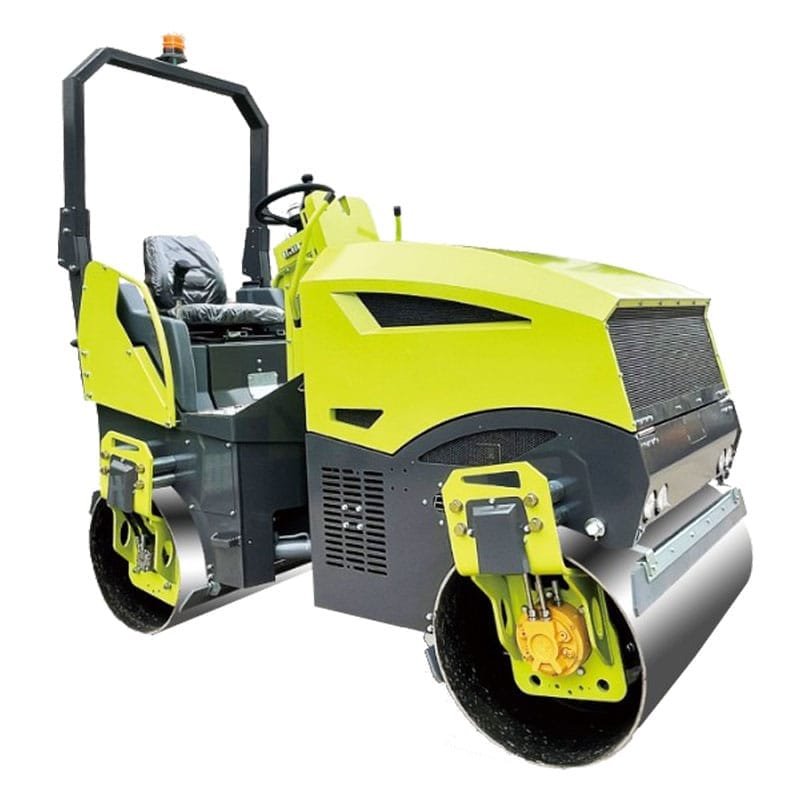

HR3000 Double Drum Road Roller Datasheet
| Item | Specification |
|---|---|
| Dimensions (mm) | 2400 × 1355 × 2630 |
| Machine Weight (kg) | 3000 |
| Steel Wheel Diameter (mm) | 1200 |
| Steel Wheel Width (mm) | 630 |
| Engine Model | Yanmar 3TNV88 |
| Engine Power (kW) | 28.1 |
| Speed Range (km/h) | 0–10 |
| Travel Mode | Hydraulic Drive, Forward and Reverse |
| Braking System | Hydraulic Locking Brakes |
| Vibrating Force (kN) | 40 |
| Sprinkling System | Pressure Spraying Water System |
HR4000 Double Drum Road Roller Datasheet
| Category | Details |
|---|---|
| Overall Dimensions(mm) | 2480×1370×2670 |
| Operating Weight(kg) | 4000 |
| Steel Wheel Diameter(mm) | 1200 |
| Steel Wheel Width(mm) | 720 |
| Engine Brand | Changchai / Yanmar / Kubota |
| Engine Model | ZN390B / 3TNV88 / V1505 |
| Output Power(kw) | 28.5 / 28.1 / 26.1 |
| Speed(km/h) | 0–10 |
| Drive Mode | Variable column gearless / Infinite speed / Hydraulic twin drives |
| Steering | Hydraulic steering with mechanical clutch |
| Vibration Force(kn) | 50 |
| Sprinkler Type | Intermittent electronic pressure water spray |

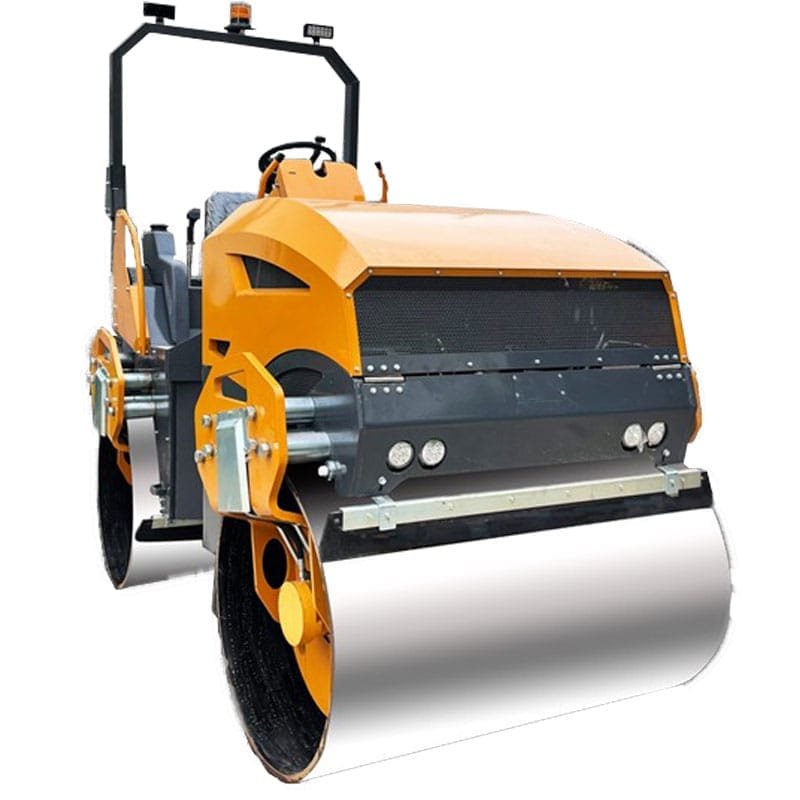

HR5000 Double Drum Road Roller Datasheet
| Category | Details |
|---|---|
| Overall Dimensions(mm) | 2850×1580×2680 |
| Operating Weight(kg) | 5000 |
| Steel Wheel Diameter(mm) | 1400 |
| Steel Wheel Width(mm) | 900 |
| Engine Brand | Changchai / Yanmar / Kubota |
| Engine Model | ZN490B / 4TNV88 / V2403 |
| Output Power(kw) | 36 / 34.5 / 33.6 |
| Speed(km/h) | 0–15 |
| Drive Mode | Variable column gearless / Infinite speed / Twin drive with mechanical linkage |
| Steering | Hydraulic steering with mechanical clutch |
| Vibration Force(kn) | 60 |
| Sprinkler Type | Intermittent electronic pressure water spray |
Product features
The double-drum road roller is designed with the latest international technology to withstand the harsh conditions of the UAE and GCC region. With its stable and reliable performance and ergonomic design, it meets the need for efficient, precise and comfortable operation, making it particularly suitable for small roads and construction sites that require frequent use. Representing well-known industry brands, it offers modern aesthetics, high quality and significant improvements in construction efficiency while ensuring safety.
- Several model options: Available in weight versions of 780kg, 1200kg, 1500kg, 2000kg, 2500kg, 3000kg, 4000kg and working widths of 700mm, 800mm, 900mm, 1200mm and 1400mm to meet different construction needs.
- Renowned brand engine: Equipped with a world-class engine, ensuring excellent performance and exceptional stability for reliable long-term operation.
- International brand hydraulic pump and motor: Equipped with a stepless transmission that supports both forward and reverse travel for greater operational flexibility and efficiency.
- Precision Hawk-Eye body design: Offers a wider field of vision, improving operational safety while enhancing the overall aesthetic appeal that contributes to a professional corporate image.
- LED Display Dashboard: Provides real-time operating data, allowing operators to quickly and accurately monitor machine status.
- Work and warning lights: Equipped with lights to ensure optimum working conditions, even during night-time operations, to keep the job site safe.
- Ergonomically designed seat: Ensures comfort during long hours of work, reducing operator fatigue and increasing productivity.
- Steel wheels with tread marker lights: Improves site visibility and helps prevent safety accidents.
- Air-cooled hydraulic oil radiator: Ensures rapid heat dissipation to maintain machine efficiency and is particularly suitable for extended operation in high temperature environments.
- Three drive motors: Ensures efficient power transmission, improving the overall efficiency and stability of the machine.
- Comprehensive safety protection: Provides overload and overheating alarms, effectively preventing damage in extreme working conditions.
Whether working during the day or in the intense heat of the night, the Double Drum Road Roller delivers exceptional performance and flexibility, making it the perfect choice for any job site.
