Diesel Generator Light Tower
The Hiking Diesel Generator Light Tower is a high performance lighting solution designed specifically for harsh environments. It is widely used in construction sites, airport beacon towers, harbours and other locations. Equipped with a high quality branded diesel engine, it ensures outstanding performance and long-lasting operation. Compared with traditional light towers, the diesel generator light tower offers significant advantages in terms of light quality, longer life and stability. It meets the lighting needs of environments with limited or unreliable power sources, while providing highly adjustable beam angles and long-distance illumination capabilities, ensuring the safety and efficiency of various operations.
The Hiking Diesel Generator Light Tower is equipped with high flux lamps, with options for metal halide or LED lamps, to provide a wide illumination range. It also features a self-designed heavy-duty manual winch, a 3-step/4-step adjustable mast, galvanised light poles and wind-resistant support legs to ensure stable operation even in high wind and harsh weather environments. The large capacity fuel tank design supports extended continuous operation, greatly enhancing comfort. Whether on a construction site or as an airport beacon, it provides efficient and reliable lighting, making it your ideal choice.
Products

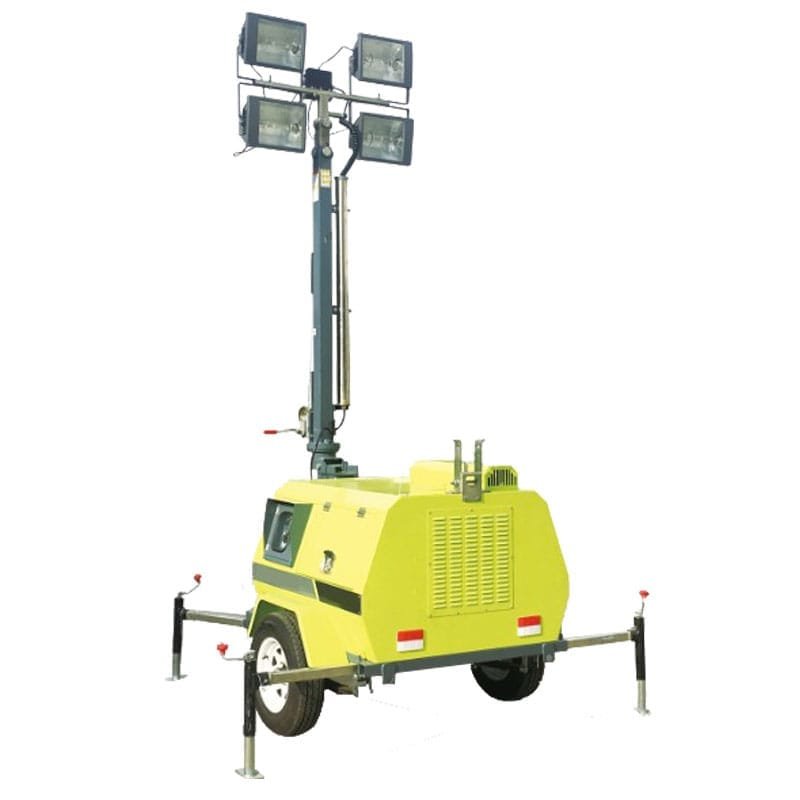

HDLT4000 Diesel Generator Light Tower Datasheet
| Model | HDLT4000 |
|---|---|
| Engine Brand | Changchai / Yanmar |
| Engine Model | 3M78 / 3TNV76 |
| Engine Power | 11.5 kW / 10.7 kW |
| Continuous Working Time | 80 h |
| Fuel Tank Capacity | 110 L |
| Light Type | Halogen Lamp / LED Lamp |
| Lamp Power × Quantity | 1000 W × 4 / 400 W × 4 |
| Luminous Flux | 440,000 lm / 224,000 lm |
| Generator Configuration | Sparks |
| Max Elevation Height | 9 m |
| Overall Dimensions | 4400×1670×1830 mm |
| Weight | 980 kg |

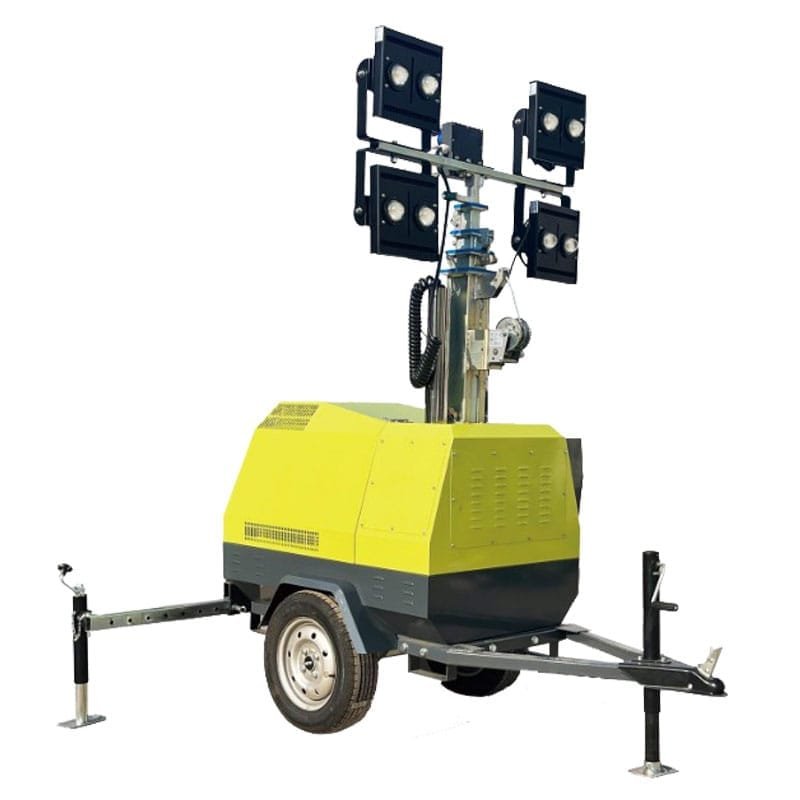

HDLT4000B Diesel Generator Light Tower Datasheet
| Model | HDLT4000B |
|---|---|
| Engine Brand | KAMA / Changchai |
| Engine Model | 186F |
| Engine Power | 6 kW |
| Continuous Working Time | 28 h |
| Fuel Tank Capacity | 38 L |
| Light Type | Halogen Lamp / LED Lamp |
| Lamp Power × Quantity | 1000 W × 4 / 400 W × 4 |
| Luminous Flux | 440,000 lm / 224,000 lm |
| Illumination Distance | 100 m |
| Elevation Mode | 7 m |
| Overall Dimensions | 2180×1130×2700 mm |
| Weight | 550 kg |

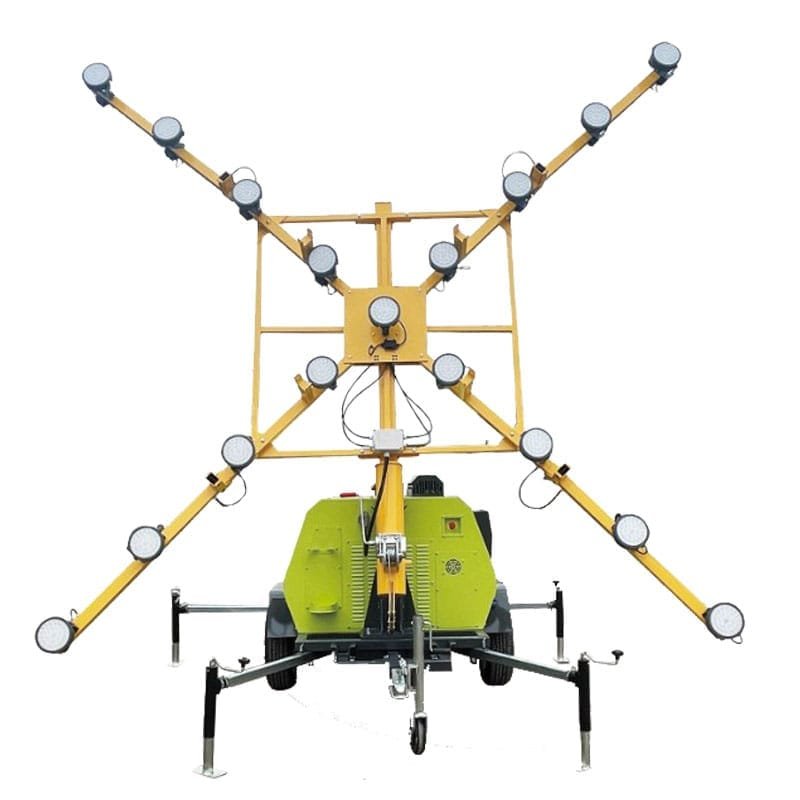

HDLT4000C Aircraftwarning Light Tower Datasheet
| Model | HDLT4000C |
|---|---|
| Engine Brand | Changchai |
| Engine Model | 3M78 |
| Engine Power (kw) | 11.5 |
| Continuous Operation Time (h) | 65 |
| Fuel Tank Capacity (L) | 90 |
| Floodlight Type | LED Lamp (Yellow/White optional) |
| Lamp Power (W x Quantity) | 48 x 17 |
| Lumens (lm) | 140,000 |
| Generator Setup | SPARKS |
| Lift Height (m) | 4.6 |
| Overall Dimensions (mm) | 3300 x 4350 x 4600 |
| Weight (kg) | 1100 |

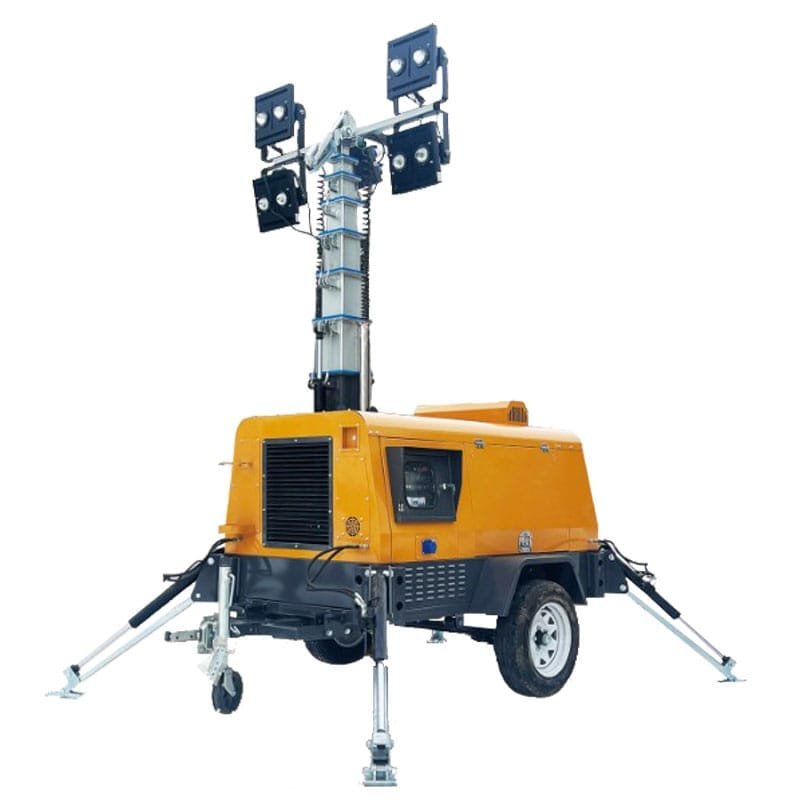

HDLT1600 Diesel Generator Light Tower Datasheet
| Model | HDLT1600 |
|---|---|
| Engine Brand | Changchai / Yanmar |
| Engine Model | 3M78/CZ3800 / D1105/3TNV76 |
| Engine Power | 11.5/14.7 kW / 12.6/10.7 kW |
| Continuous Working Time | 65 h |
| Fuel Tank Capacity | 90 L |
| Light Type | Halogen Lamp / LED Lamp |
| Lamp Power × Quantity | 1000 W × 4 / 400 W × 4 |
| Luminous Flux | 440,000 lm / 224,000 lm |
| Generator Configuration | Sparks |
| Elevation Mode | Hydraulic |
| Max Elevation Height | 9 m |
| Overall Dimensions | 4100×2400×2480 mm (unfolded) / 3600×1670×2480 mm (folded) |
| Weight | 1360 kg |
Product Features
The Diesel Generator Light Tower is equipped with a top-of-the-range diesel engine, ensuring stable quality and exceptional performance. Its design combines modern technology with stringent environmental requirements, overcoming the limitations of traditional lighting equipment in harsh conditions, especially in locations where long-lasting lighting and high efficiency are required. The brand is well known, reliable and highly adaptable.
- Powerful diesel engine: Equipped with a branded diesel engine, ensuring stability and exceptional power generation capabilities.
- Choice of metal halide or LED lamps: Provides high luminous flux, ensuring wide illumination coverage and long service life.
- Integral hand-operated winch: Ensures safe and smooth lifting and lowering.
- 3-step/4-step adjustable mast: Paired with galvanised mast to prevent falling, resist corrosion and adapt to harsh environments.
- Five wind-resistant support legs: Provides excellent stability, ensuring secure support in windy conditions.
- Integrated control panel: Equipped with rain cover, easy to use, dustproof and waterproof, suitable for different weather conditions.
- Adjustable height (7m/9m): The lift height is adjustable and the beam angle can be changed to meet different lighting needs with long distance coverage.
- Large capacity fuel tank: Supports extended continuous operation, reducing the need for frequent refuelling and improving working efficiency.
- Versatile: Ideal for construction sites, ports, airports and other scenarios, providing efficient mobile lighting solutions.
This diesel generator light tower meets the diverse needs of customers, offering excellent performance, stability, design versatility and ease of use. It is your perfect choice for a reliable and powerful lighting solution.
