Mobile Hydraulic Station
The Hiking Mobile Hydraulic Power Station is a power equipment specifically designed for efficient and stable hydraulic systems, widely used in various industries such as construction, mining, and manufacturing. With its high-quality, imported components and exceptional performance, the hydraulic power station provides ample and continuous power support for a wide range of hydraulic tools, meeting the demands of high-efficiency operation in challenging work environments.
Products

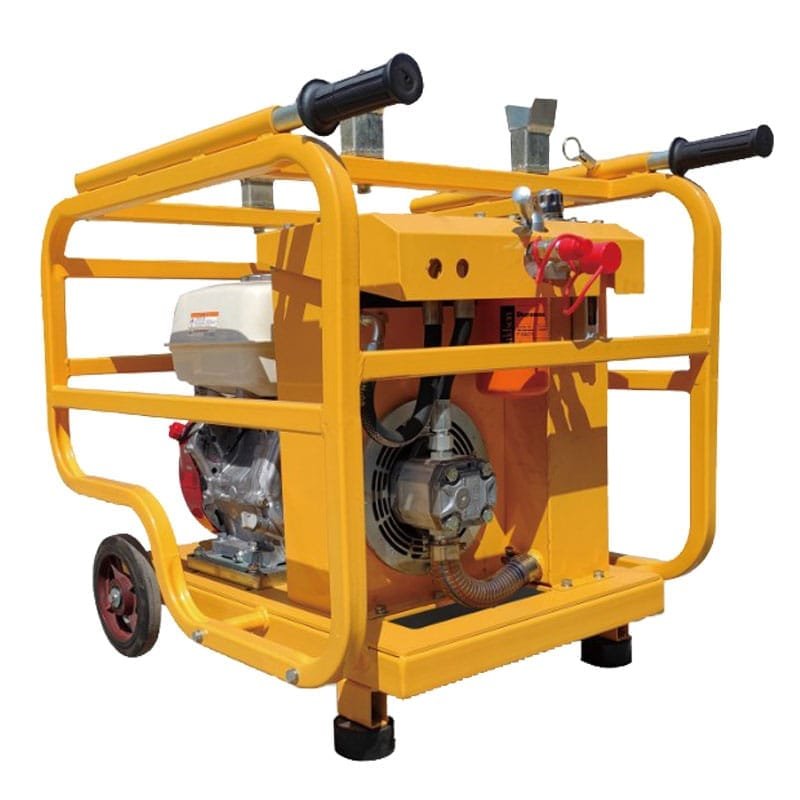

HKP13 Mobile Hydraulic Station
| Specification | HKP13-30 | HKP13-30C |
|---|---|---|
| Dimensions (mm) | 860 × 720 × 820 | 860 × 720 × 820 |
| Packaging Dimensions (mm) | 880 × 775 × 820 | 880 × 775 × 820 |
| Weight (kg) | 148 | 160 |
| Maximum Flow Rate (lpm) | 20–30 | 20–30 |
| Maximum Pressure (bar) | 155 | 155 |
| Engine Brand | Honda/B&S | Changchai |
| Engine Model | GX390/XiANFENG400 | 192F |
| Engine Type | Gasoline, 4-stroke | Diesel, 4-stroke |
| Output Power (hp) | 13/14 | 13 |
| Cooling Method | Hydraulic oil cooling | Hydraulic oil cooling |
| Starting Method | Manual/Electric | Electric |
| Connection Method | 3/8 inch quick-connect fitting | 3/8 inch quick-connect fitting |

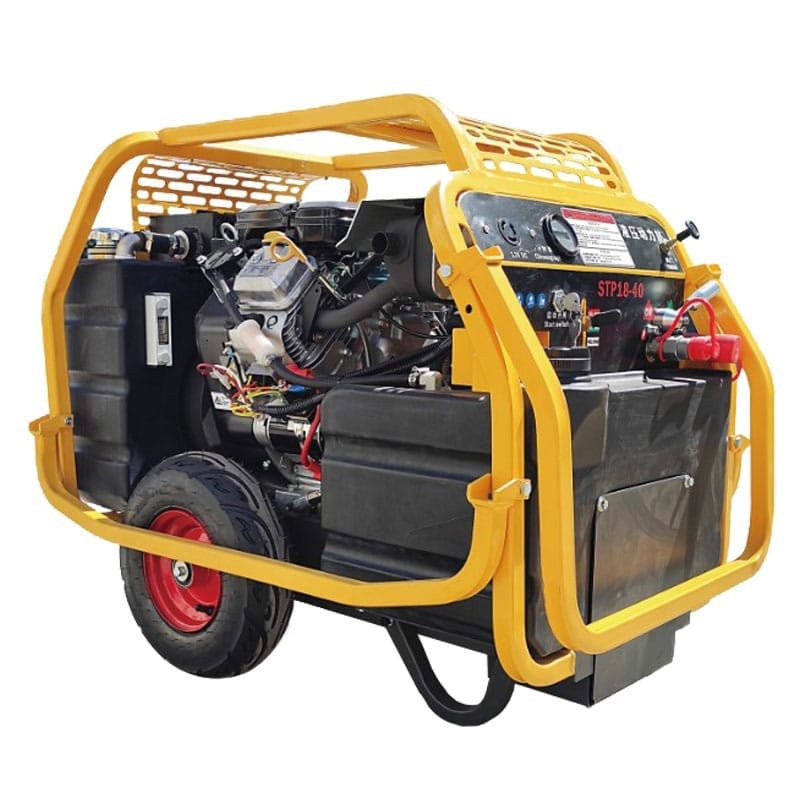

HKP18 Mobile Hydraulic Station
| Specification | HKP18-40 | HKP18-40C |
|---|---|---|
| Dimensions (mm) | 950 × 620 × 760 | 1140 × 620 × 850 |
| Packaging Dimensions (mm) | 1020 × 690 × 830 | 1250 × 690 × 910 |
| Weight (kg) | 146 | 203 |
| Maximum Flow Rate (lpm) | 30–40 | 30–40 |
| Maximum Pressure (bar) | 155 | 155 |
| Engine Brand | Baolitong | Huayuan Kaimar |
| Engine Model | 3564 | KM290F |
| Engine Type | Double-cylinder, gasoline | Double-cylinder, diesel |
| Output Power (hp) | 18 | 18.3 |
| Cooling Method | Hydraulic oil cooling | Hydraulic oil cooling |
| Starting Method | Electric | Electric |
| Connection Method | 3/8 inch quick-connect fitting | 3/8 inch quick-connect fitting |
HKP30 Mobile Hydraulic Station
| Specification | HKP30-60 |
|---|---|
| Dimensions (mm) | 1020 × 640 × 810 |
| Packaging Dimensions (mm) | 1200 × 760 × 1020 |
| Weight (kg) | 203 |
| Maximum Flow Rate (lpm) | 2 × 20 / 2 × 30 |
| Maximum Pressure (bar) | 155 |
| Engine Brand | Baolitong |
| Engine Model | 490000 |
| Engine Type | Double-cylinder, gasoline |
| Output Power (hp) | 27 |
| Cooling Method | Large-capacity hydraulic oil cooling |
| Starting Method | Electric |
| Connection Method | 3/8 inch quick-connect fitting |
HKP35 Mobile Hydraulic Station
| Specification | HKP35-80 |
|---|---|
| Dimensions (mm) | 1120 × 630 × 930 |
| Packaging Dimensions (mm) | 1200 × 760 × 1020 |
| Weight (kg) | 195 |
| Maximum Flow Rate (lpm) | 2 × 30 / 2 × 40 / 1 × 80 |
| Pressure Range (bar) | 120–175 |
| Engine Brand | Baolitong |
| Engine Model | 6134 |
| Engine Type | Double-cylinder, gasoline |
| Output Power (hp) | 35 |
| Cooling Method | High-performance hydraulic oil cooling system |
| Starting Method | Electric |
| Connection Method | 3/8 inch quick-connect fitting |
Product Features
1.Original imported engine, providing ample power for hydraulic equipment.
2.High-quality quick connectors for easy and fast tool changes.
3.Imported control valve block, ensuring stable flow output.
4.Original imported hydraulic pump, guaranteed quality and stable performance.
5.Large-capacity hydraulic oil cooler with fan for effective cooling.
6.Equipped with foldable handles and mobility wheels for easy transportation.
7.Sturdy steel frame, durable and resistant to damage, effectively protecting the engine and extending the machine’s lifespan.
8.Plastic spray-coated surface, corrosion-resistant with an elegant appearance.
The Hiking Machinery Mobile Hydraulic Power Station combines efficiency, stability, and durability, making it your ideal solution for powering hydraulic equipment. Whether in harsh work environments or extended periods of high-intensity use, it delivers reliable performance and excellent work efficiency, ensuring the smooth progress of your projects.
